AA / AAU
Available in acoustic and ukulele.
aNueNue Air Air Dual Pickup system is design in HD to reproduce the purest, and dynamic sound of instrument. Air Air is friendly to use with simple (Vol) and (Mic) Control. HD Integrated Circuit Preamp design delivers low distortion, super low noise, and wide dynamic range.
Guitar
Ukulele
Low Distortion：0.001%@1KHz
Low Noise：-142dBV@10KHz
Signal to Noise：114dB
Jack diameter：6.35mm
Battery：3V (CR2032) Coin Battery
Battery life：80 hours Operation
Volume Control (Vol Control) acts as the Master volume for the Undersaddle Piezo Pickup and the microphone.
The microphone control (Mic Control) adjusts the sound from the ukulele's body resonant, which is used to compensate for and enhance the tone of the piezo pickup. It captures the air resonance inside the instrument body and can make percussive tapping sounds.
Playing Instructions:
- If you are playing at home, you can turn up the microphone to get more body resonance or to make percussive tapping on the body easier. If feedback (howling) occurs, you can turn down the microphone.
- If you are on stage and experiencing feedback caused by monitor speakers pointing directly at you, you can turn down the microphone.
Omni-Directional Air Microphone

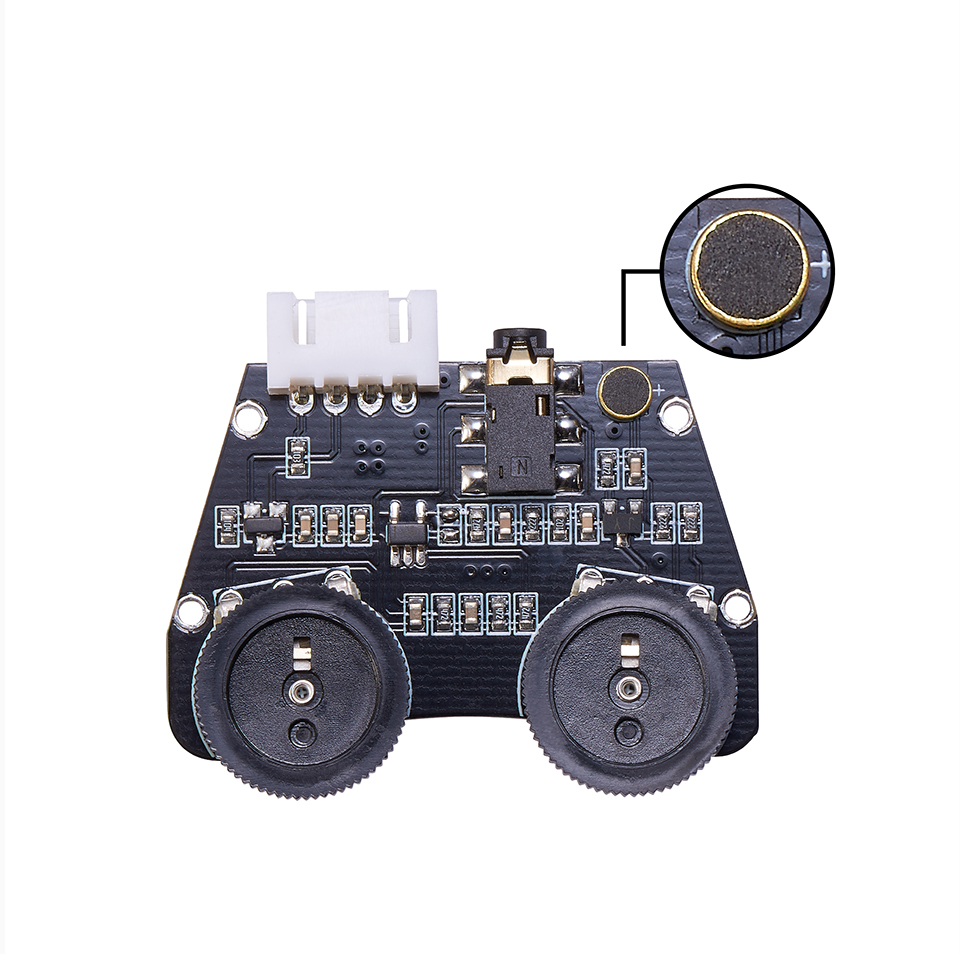

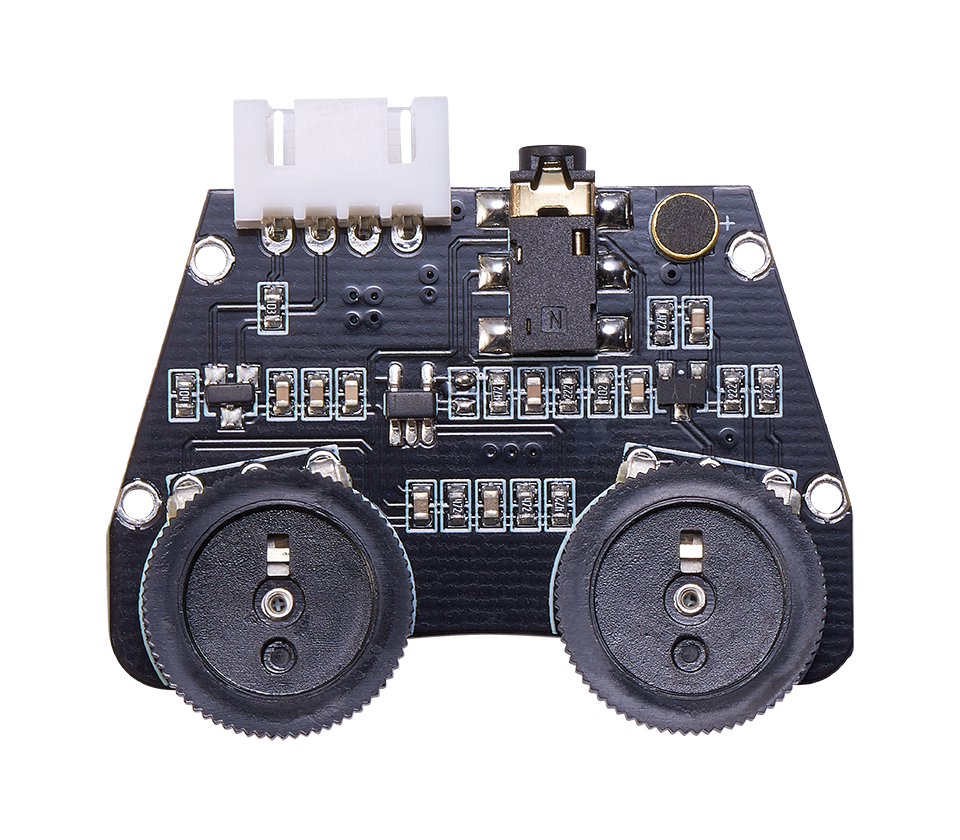

On the Control unit, a high performance Omni-Directional Air Microphone is sitting on the PCB Board. The "purest" microphones in terms of low coloration; they add very little to the original sound. Being pressure-sensitive they can also have a very flat low-frequency response down to 20 Hz or below. The Air Mic adds harmonically rich tone, and pick up the air reflex. Mic level can be adjusted to the fingerstyle percussion on the instrument body.
Undersaddle
aNueNue undersaddle (AU) acoustic pickup is design to pick up the top motion of the soundboard. AU pickup use earthquake grade sensor film only 0.6mm thick picks up the most delicate vibration. Plucking of String release energy into Soundboard and the top motion air reflex generates beautiful sound. The dynamic frequency/wave is capture by AU Pickups.

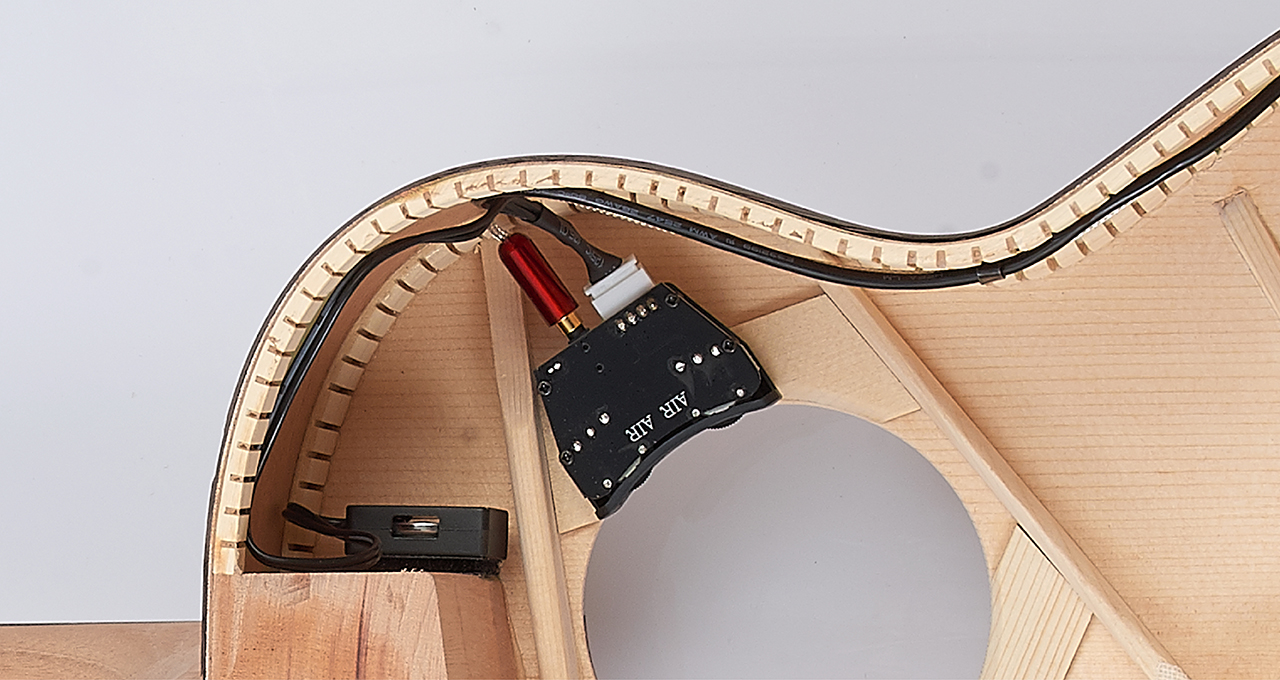

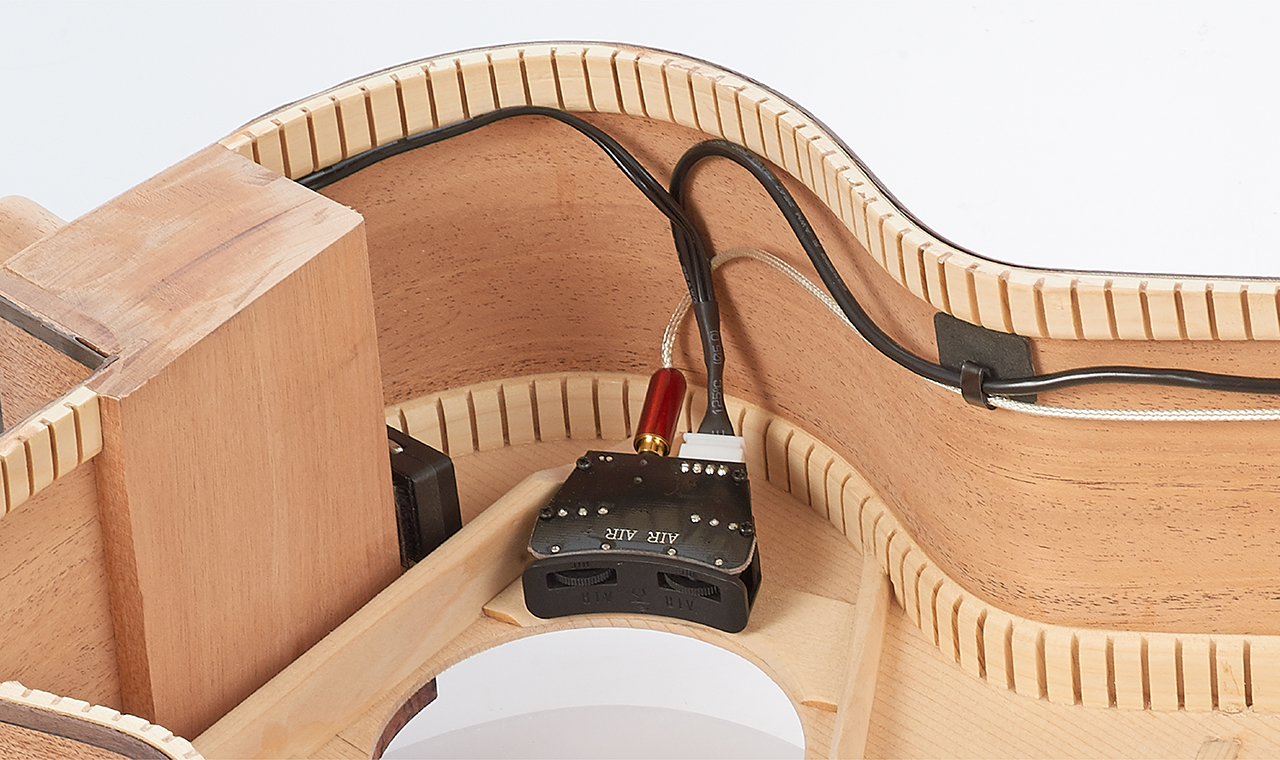

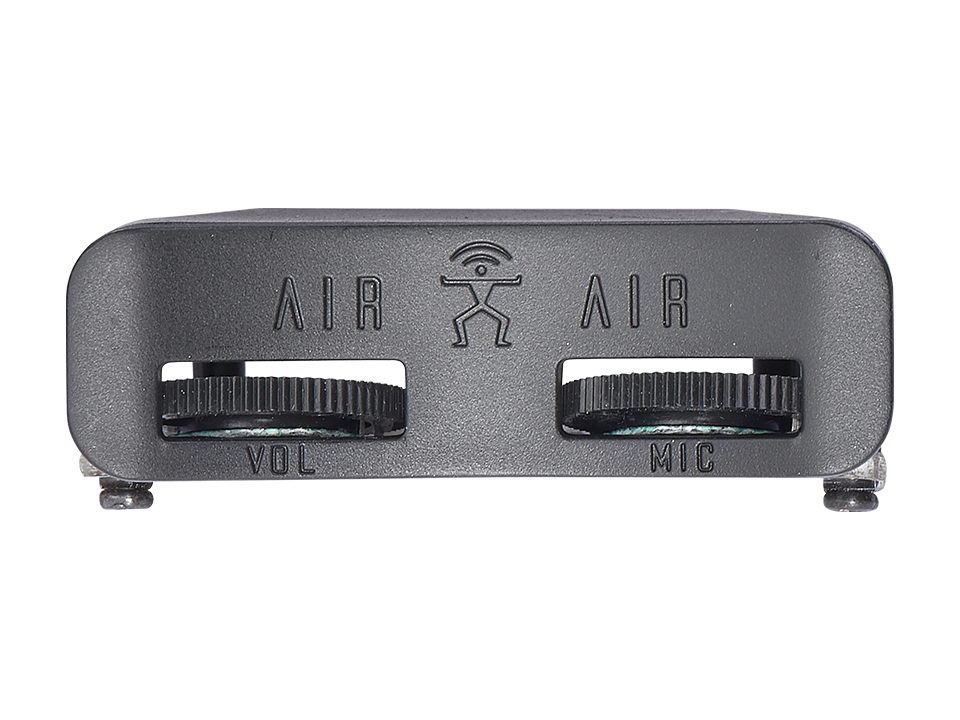

Soundhole Mounted Control with Vol & Mic.
